2.2.6.1. mijin Catapult(v.2) EC2 instance login how to

This chapter describes how to log in to a node on mijin Catapult(v.2) on AWS.

mijin Catapult(v.2) is running on a Linux server, so this is the procedure for Linux login method. However, since AWS has ‘Session Manager’ that allows easy remote login from the management console, we set up remote login with Session Manager when deploying.
To learn more about Session Manager, please see below.
https://docs.aws.amazon.com/ja_jp/systems-manager/latest/userguide/session-manager.html

Note

This chapter is an example of the login procedure to EC2 when deploying mijin Catapult(v.2) in AWS MarketPlace.
The connection can be established by changing the security group, etc. using SSH or other conventional remote login methods.
creation-day:

Aug. 1, 2022

update date:

Aug. 14, 2026

Note

These steps assume Docker Compose v2 ( docker compose ). In environments running Compose v1, such as the free edition image, read it as docker-compose (with a hyphen). Note that the output format of the commands may differ depending on the Compose version.

2.2.6.1.1. Log in to AWS Management Console

Log in at the AWS Managed Console

https://aws.amazon.com/jp/console/

2.2.6.1.2. Move to EC2 Service

  1. Click on ‘Services’ at the top

  2. Click on ‘Compute’ from the menu that appears

  3. Click on ‘EC2.’

../../_images/aws_ssm_login1.en.png

2.2.6.1.3. Select the instance you wish to log in to and connect

  1. Click on ‘Instances’ from the left menu

  2. From the list of instances, click the check box for the node you wish to log in.

  3. Press ‘Connect.’

../../_images/aws_ssm_login2.en.png

2.2.6.1.4. Select Session Manager and connect

  1. Make sure it is ‘Session Manager.’ (If not selected, click on it)

  2. Press ‘Connect.’

  3. A separate console screen window opens.

../../_images/aws_ssm_login3.en.png

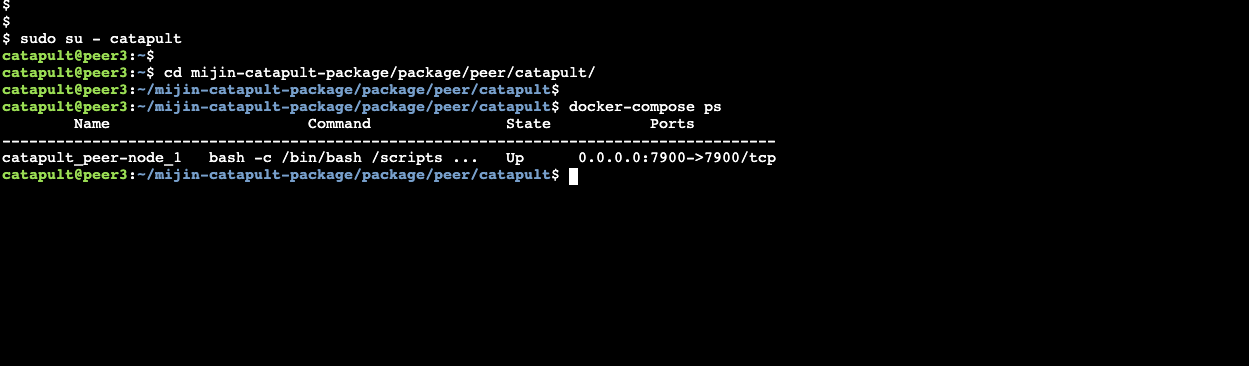

2.2.6.1.5. Console screen operation

  1. Confirm that ‘$’ appears in the console screen window.

  2. mijin Catapult(v.2) switch to the UNIX user catapult running

    sudo su - catapult

  3. Check to see if mijin Catapult(v.2) is working.

    # PEERノードに接続した時(本章ではPEERノード接続時) When connected to a PEER node (in this chapter, when connected to a PEER node)
cd mijin-catapult-package/package/peer/catapult/
docker compose ps

# APIノードに接続した時 When connected to an API node
cd mijin-catapult-package/package/api/catapult/
docker compose ps
../../_images/aws_ssm_login4.png

Note

mijin Catapult(v.2) runs as one of the containers on docker.
Knowledge of docker is required for operation.
For knowledge of Docker, please refer to the following documents
https://docs.docker.jp/
Official (English)
https://docs.docker.com/get-started/overview/
